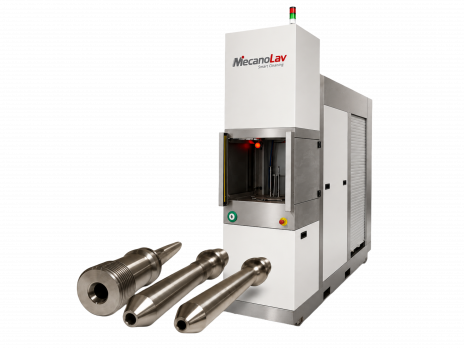

MecanoFAST

Robot-friendly short-cycle parts washer
  • Fast > High production rate (few seconds)

  • Compact > Under 2m² / 22 ft² floor space

  • Efficient > Meets to cleanliness standards | ISO 16232 – VDA 19

  • Robot friendly > Robot cell cleaning

  • One piece flow cleaning process without buffer

  • Lean manufacturing solution

  • Made in France

Welcome to the modern world of cleaning
"One piece flow"

Optimize your takt time

MecanoFAST ensures a very high cleaning rate from 20 to 60 seconds depending on the workpiece type and complexity!

Easy integration between production steps

Designed to be easily integrated into the production flow, MecanoFAST allows easy integration between upstream and downstream manufacturing processes.

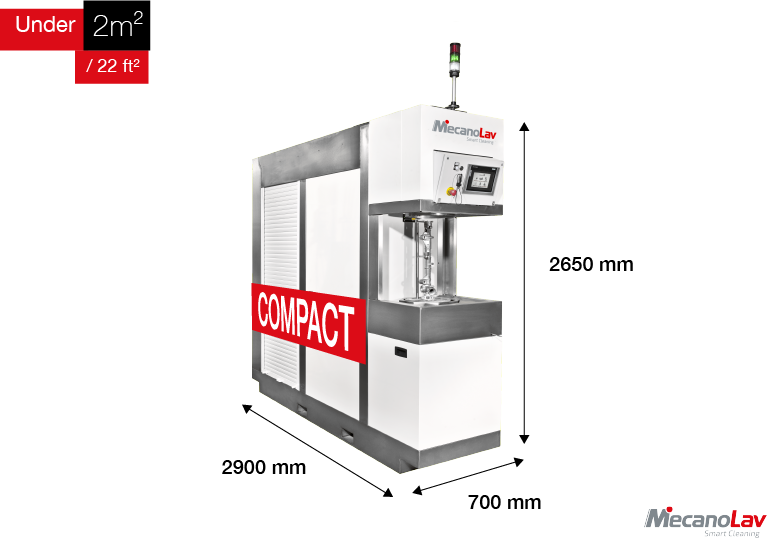

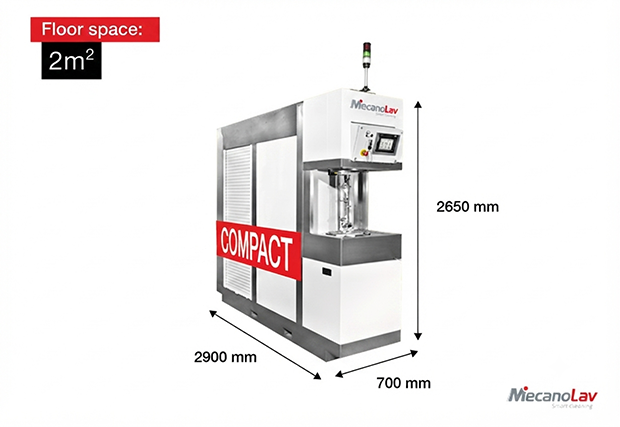

  • Under 2m² / 22 ft² floor space

  • Width 700mm / 2′ 3 9/16”

Mecanofast compact parts washer

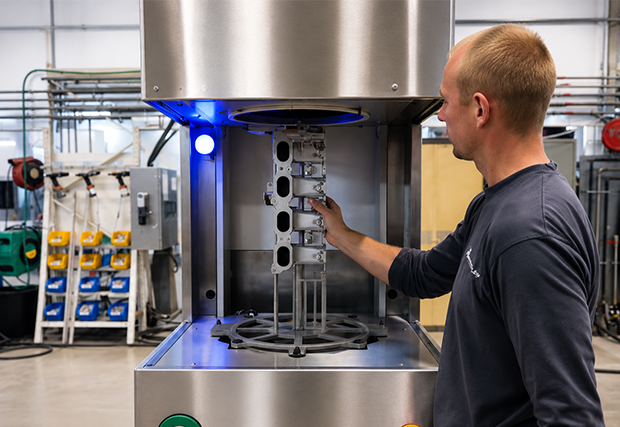

Continuous flow cleaning

The batch/basket cleaning concept generates a major disruption for the production efficiency resulting in slowing down the flow and generated downstream and upstream stock.

The MecanoFAST process takes a very different approach , this equipment use the one-piece flow concept with a short cycle time.

  • Continuous flow: no batch

  • Loading  and unloading on the same fixture

  • Single piece > no buffer

  • Quick detection of machine failure

One-piece flow parts washer

Targeted cleaning and drying

The part fixture, the cleaning/drying tools are designed in 3D model and produced according to the parts drawing.

  • Cleaning and drying of critical areas, blind holes, thread, etc…

  • Perfect drying

  • Part exit temperature below 35°C (95°F)

Parts washers manufacturer's integrated design department

Process reliability & repeatability

The MecanoFAST integrates high quality components from premium brands.

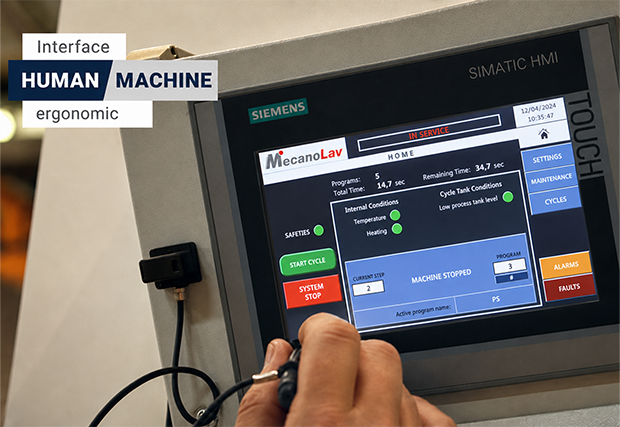

  • Display and process data monitoring

  • Automatic addition / topping up of detergent

  • Programmable partial drain

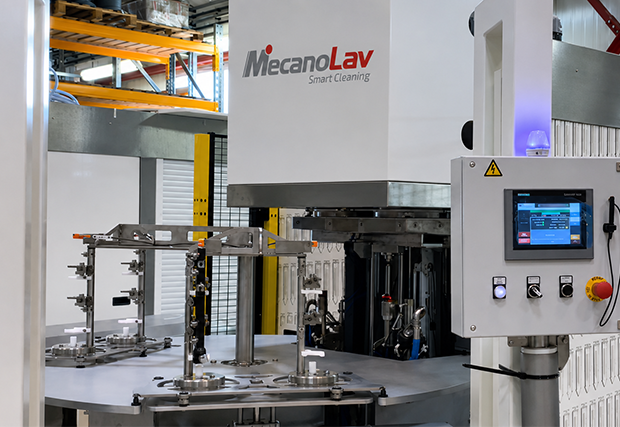

Improve your competitiveness by reducing operating costs by 50 %

Overall the MecanoFAST system consumes 2 time less energy and around 4 times less water than the traditional Tunnel or Carrousel system type.

Flexible for the production flow

Is your assembly or production line operate manually or fully automated ?
The MecanoFAST system has a large front loading/unloading access for a quick and efficient load.

  • Semi-automated flow > technicians protected with light curtains

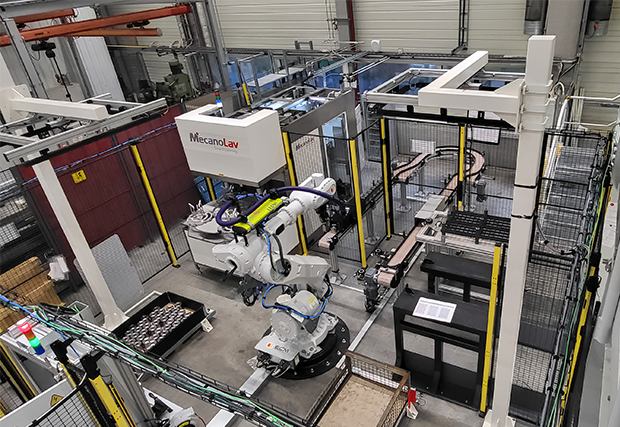

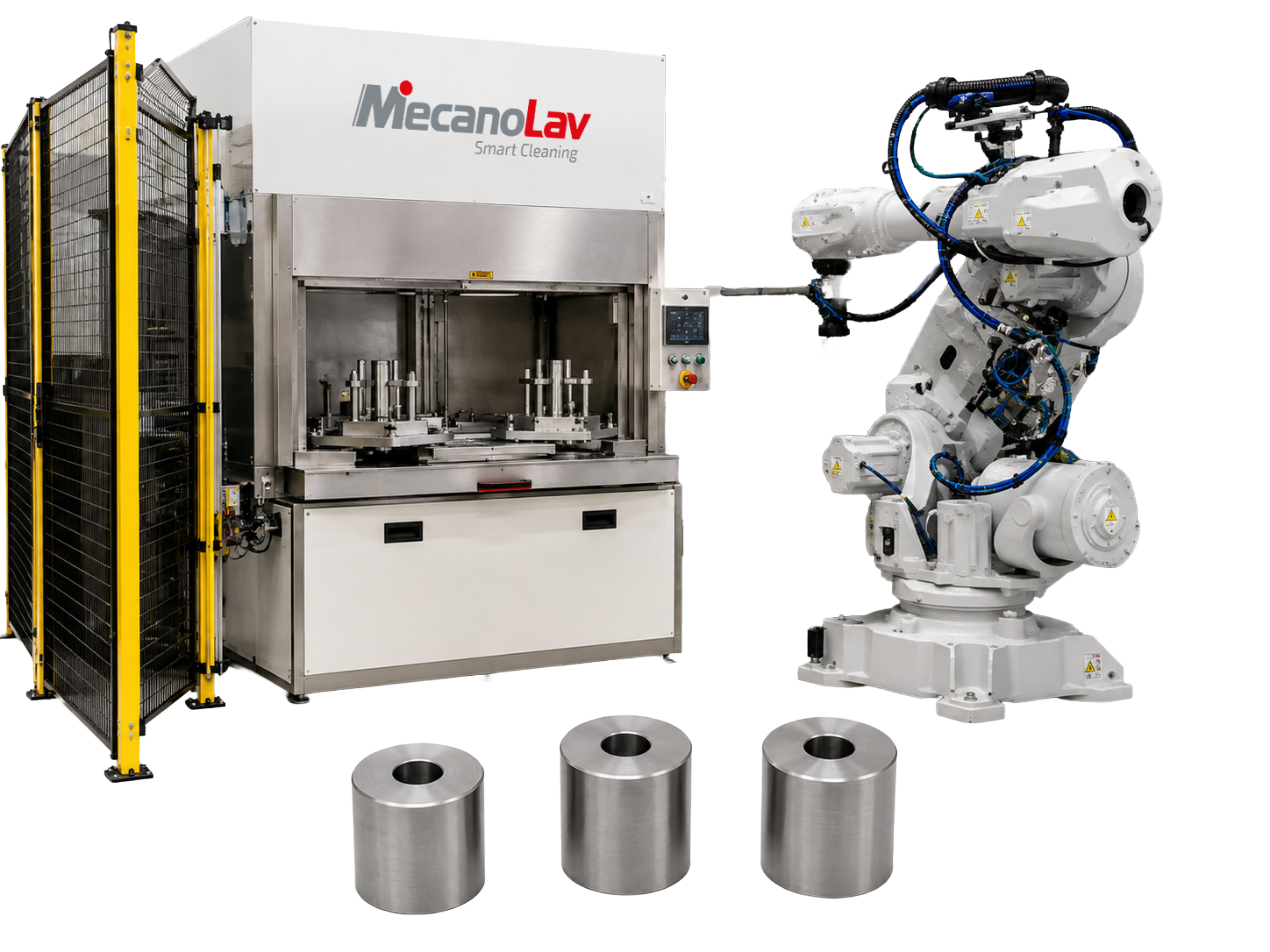

  • Automated flow  > integrated into a robotic cell via the Profinet interface and PN/PN coupler

Modular and easily upgradeable

Quick change over > replace tooling in less than 5 minutes !

Reconfiguration > only the tooling need to be replaced to run a different part number.

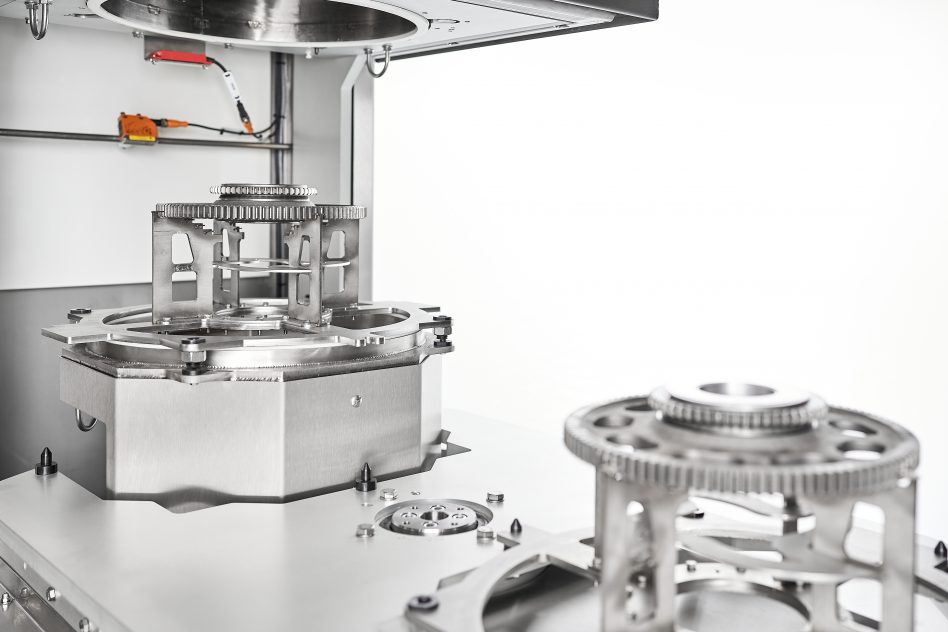

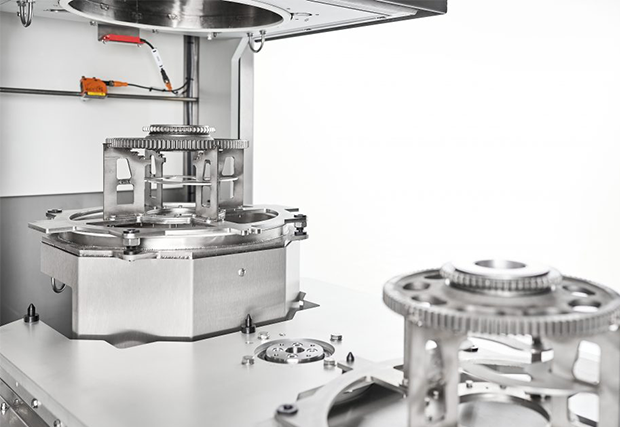

Integration of an indexed rotary table ensuring loading/unloading in masked time during cleaning cycle.

Also allows the integration of additional post cleaning process such as marking, traceability, quality check etc…

Tables of robot-friendly short-cycle parts washer

An answer to your cleanliness requirements

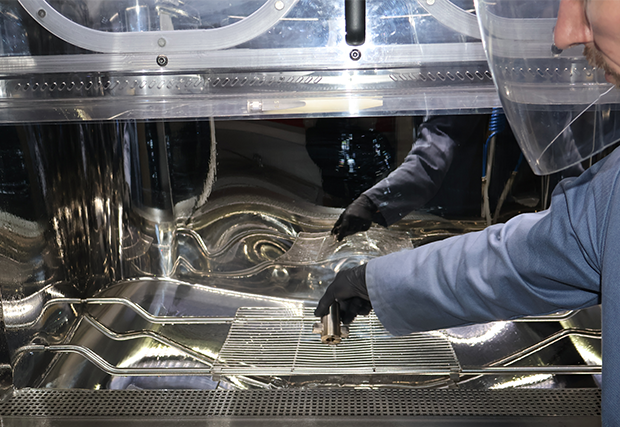

We support you by setting up validation trials and analysis in our laboratory.

  • Gravimetry and particle size

  • Standards VDA19 – ISO 16232

  • Surface tension measurement

Streamlined and secured maintenance

A roller shutter combined with a set of sensors to ensure a secured and simplified access to the filtration system, tank and other moving parts.

  • Self-cleaning of the work chamber

  • Automatic or complete partial draining

  • Maintenance monitoring management via HMI

  • Option to connect the machine to an outside central washing unit

Robot-friendly short-cycle parts washer maintenance
photo_filter

Technical specifications

chevron_right Download the brochure

Useful dimensions

Chamber diameter
250 to 600 mm (9 3/16")
Chamber height
500 to 1000 mm (19 11/16" to 39 3/8")
Special horizontal chamber
600 to 2000 mm (23 5/8" to 78 3/4")
Loading height
1100 mm (3' 7 5/16")
Maximum load
50 Kg (110 lbs)

Overall dimensions (excluding rotary table)

Width
700 mm (2' 3 9/16")
Height
2650 mm (8' 8 5/16")
Length
2995 mm (9' 9 15/16")

Others

Power Installed
18 kW
Tank volume
300 liters (80 US gal)
Noise level
78 Db (A)
Communication interface
Native Profinet I/O
Smart cleaning
Solve our customer cleanliness issues by finding out the appropriate cleaning solution
Case study
Corps de vérin suite au lavage et au séchage de la pièce
Industry & HT
Cleaning and drying hydraulic body cylinder

Hydraulic body cylinder degreasing with MecanoFAST parts washer after machining and welding in final wash.

chevron_right
See customer project
Case study
Visuel 3D d'un Carter de Crémaillère de direction
Automotive
Cleaning steering rack housing

Particle cleaning with MecanoFAST parts washer for aluminium rack housing after machining

chevron_right
See customer project
Case study
Rampes d'injection après le nettoyage, le dégraissage et la décontamination des particules
Automotive

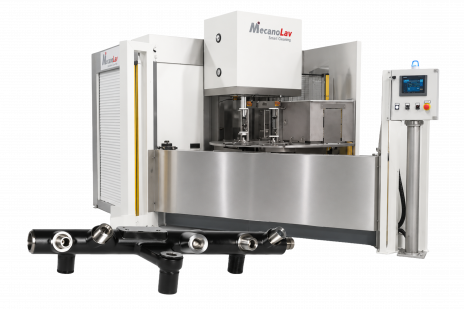

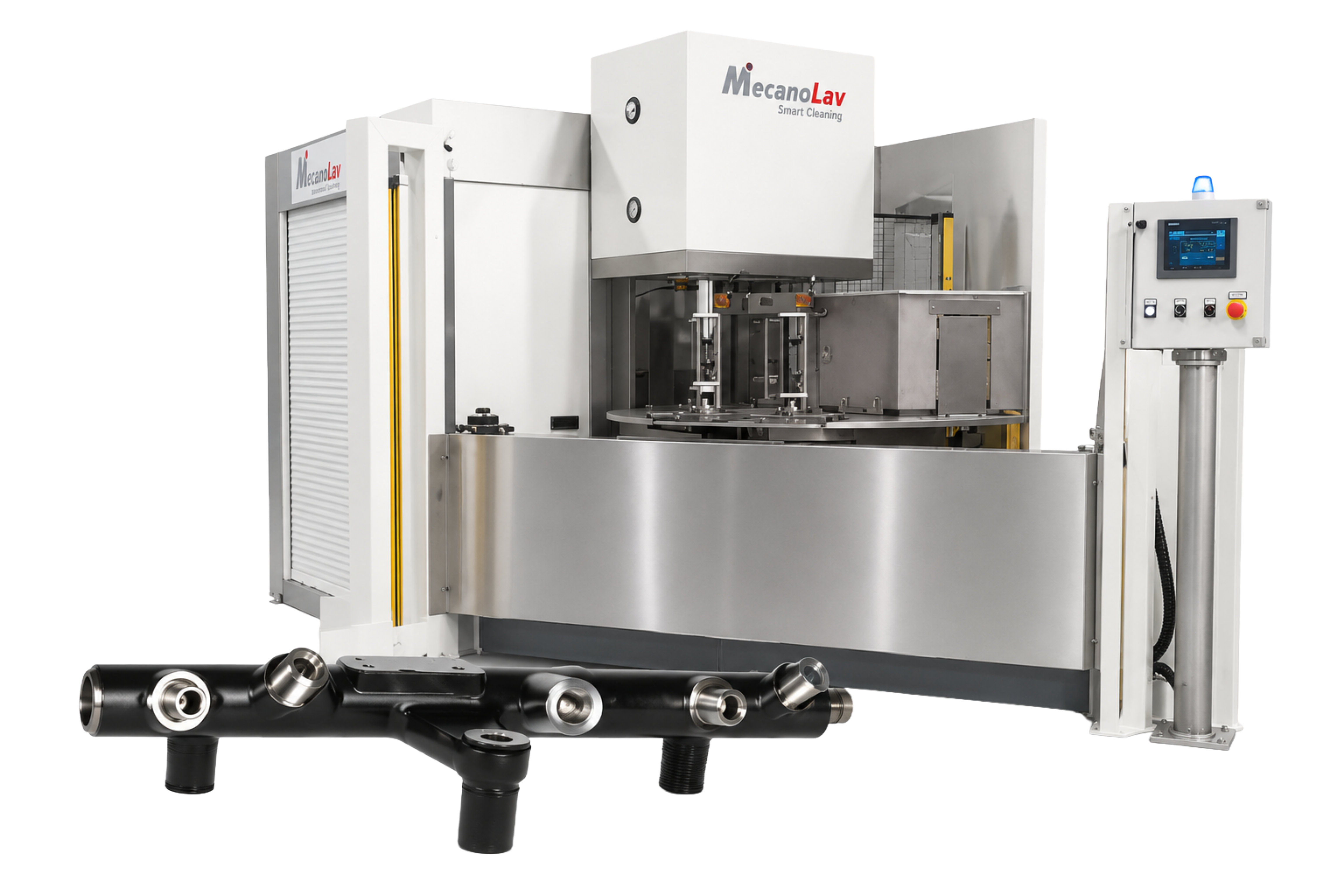

Common rail cleaning and drying

Particle removal with MecanoFAST parts washer to clean common rail before assembly and leak test

chevron_right
See customer project
Case study

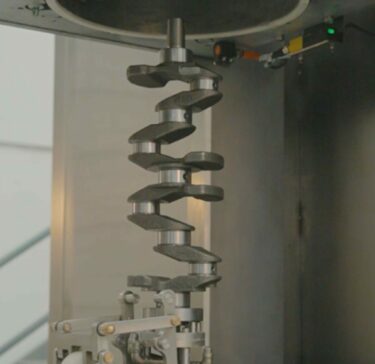

Vilebrequin avec système de bridage automatique après nettoyage
Automotive

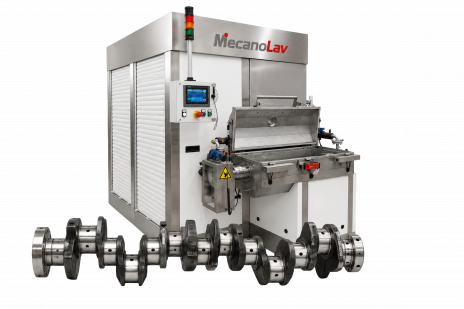

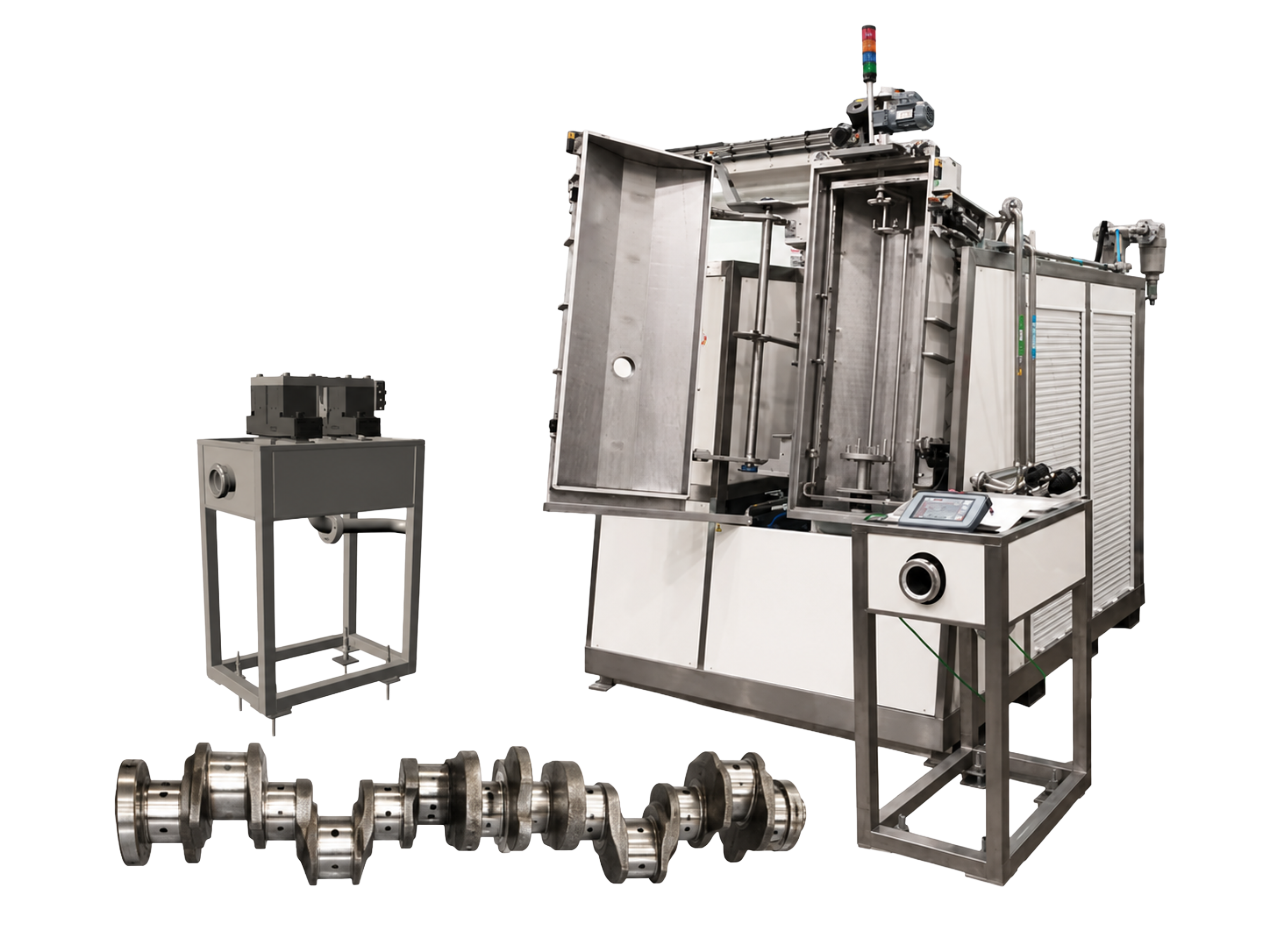

Crankshaft cleaning

Cleaning crankshaft with MecanoFAST parts washer for the automotive and heavy trucks industry

chevron_right
See customer project
Case study
Ecrou de vis sans fin après nettoyage et séchage
Industry & HT

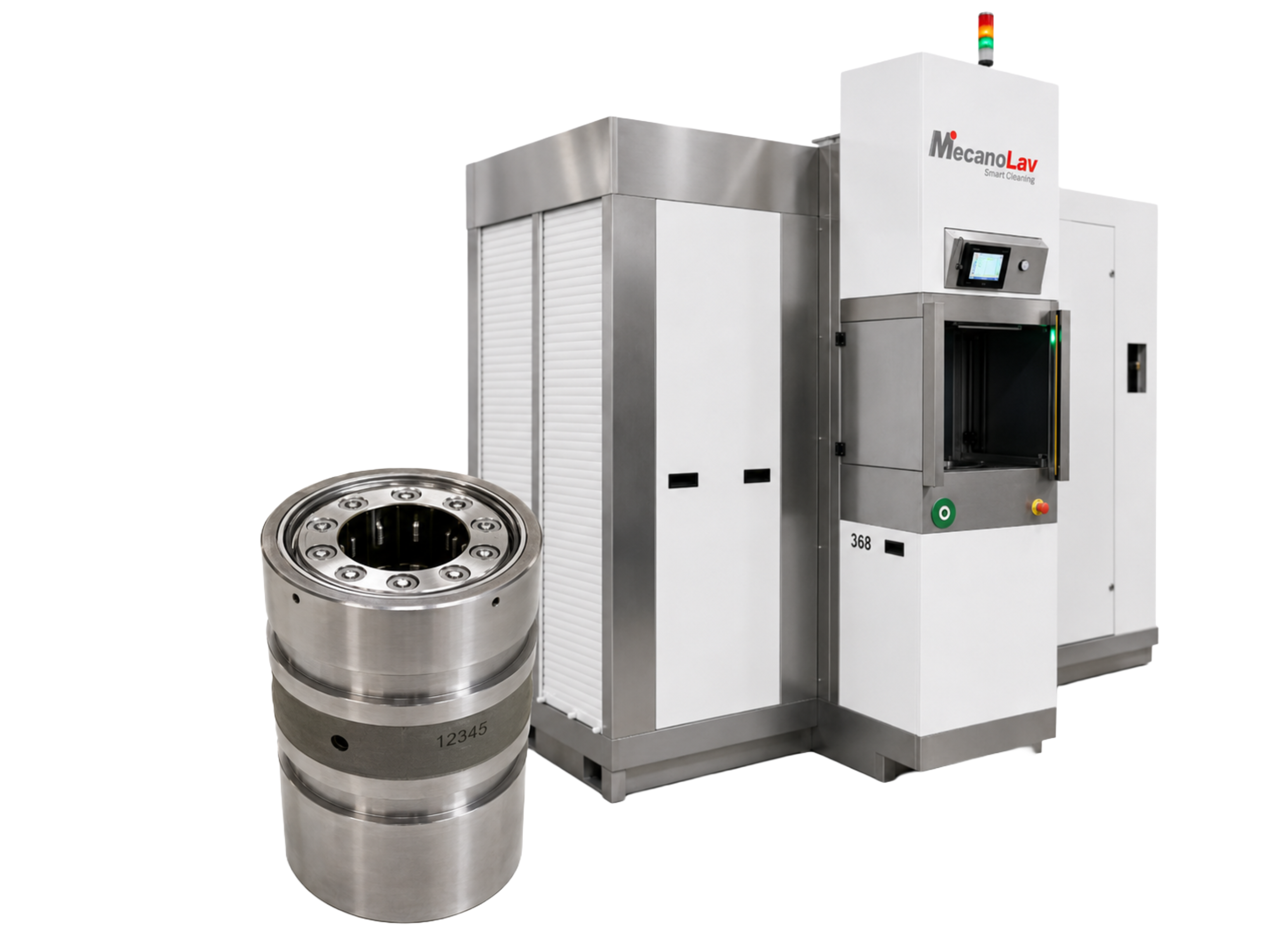

Roller screw cleaning and drying

In-process particle removal with MecanoFAST parts washer for roller screw

chevron_right
See customer project
Case study
Nettoyage, dégraissage et décontamination de particules sur cylindre de corps hydraulique
Industry & HT
Worm shaft cleaning and drying

Particle removal with MecanoFAST parts washer to clean worm shaft in in-process and final washing
