Nettoyeur à ultrasons avec charge discontinue pour un processus de nettoyage de haute pureté

PowerJet

Simple or special flood cleaning machine with ultrasound and CNp
Nettoyeur à ultrasons avec charge discontinue pour un processus de nettoyage de haute pureté
  • 3 working chamber sizes as standard

  • Cleaning by simple or special immersion method with ultrasound

  • Cleaning by simple or special immersion method with ultrasound

  • Compatible with Cyclic Nucleation process (CNp)

  • Parts packaged by bulk batches, stored or on pallet

  • Designed for high quality cleanliness requirements

  • High processing capability with low operating cost

  • Manufacturing by our partner LPW Reinigungssysteme GmbH

Degreasing and particle decontamination of complex parts by flood cleaning with ultrasound and Cyclic Nucleation process

3 standard sizes

The PowerJet cleaning machine is available in 3 standard overall dimensions depending on the size of the parts to be processed and the volume of parts to be processed.

For special applications, the working chamber can be custom-made.

  • PowerJet 530 > 530 x 320 x 200 mm

  • PowerJet 670 > 670 x 480 x 300 mm

  • PowerJet 960 > 1020 x 650 x 560 mm

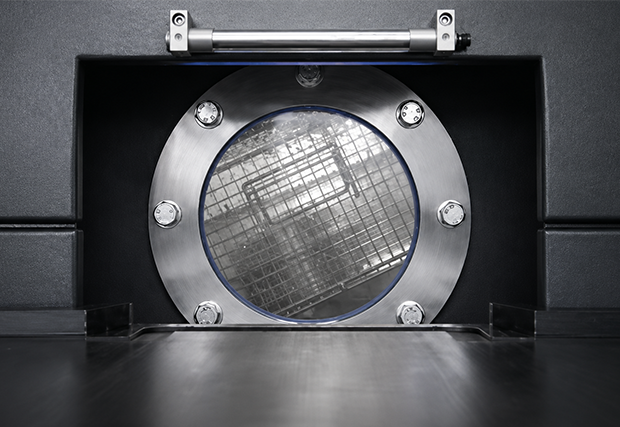

Basket of cleaning machine with ultrasound and CNp

A modular system

The PowerJet allows the use of the well-known cleaning and drying processes according to the expected cleanliness requirements.

Its flexibility allows the treatment of highly contaminated parts as well as the disinfection of medical devices (MD).

  • Spraying – Simple or special flood cleaning – Ultrasound – Cyclic nucleation (CNp)

  • Hot air drying – Vacuum drying

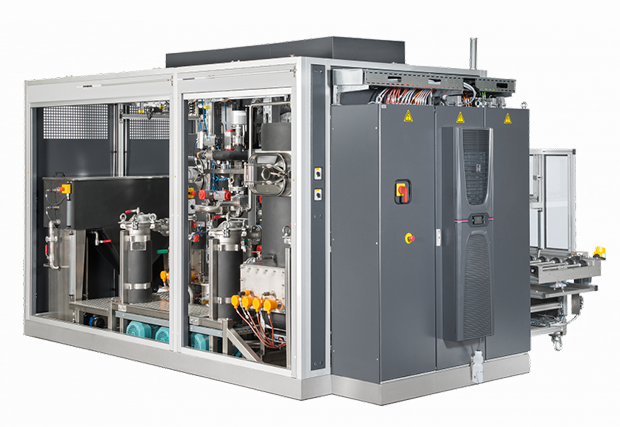

Parts cleaning machine with ultrasound and CNp

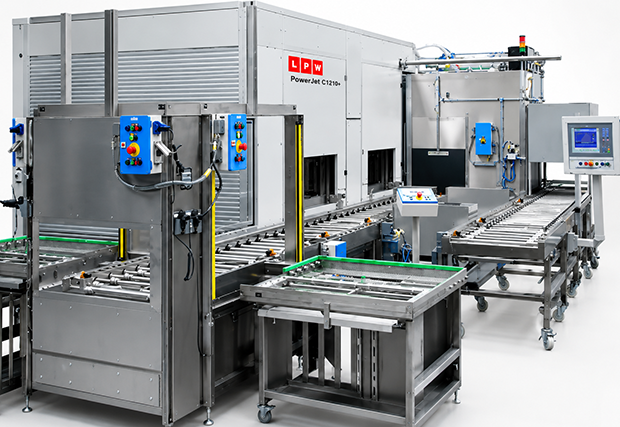

PowerJet Twin / Triple

When applications require a separation of each cleaning steps or when the production rate requires saving processing and loading time, the PowerJet is a standard machine in a multi-chamber version.

  • PowerJet Twin > 2 chambers

  • PowerJet Triple > 3 chambers

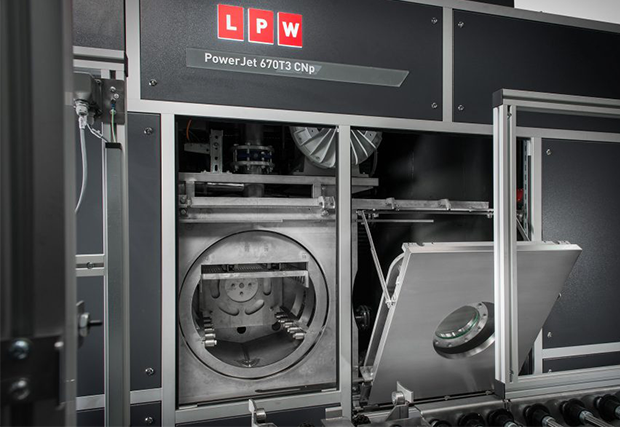

Multichamber version of parts cleaning machine with ultrasound and CNp

Fluid treatment

Operating in a closed circuit, excellent fluid treatment is essential to achieve repeatable cleanliness results and drains the bath regularly.

  • Oil skimmer

  • Distillation for aqueous solution treatment

  • By-pass filtration for continuous bath treatment

Circuit of the cleaning machine with ultrasound and CNp

Automation

The loading and unloading of the PowerJet system is fully automated with an automatic conveyor integrated with the machine.

In the case of multi-chamber machine especially in final washing in a high pace environment, it allows the loading and unloading of parallel chambers simultaneously.

Principle of flood washing

Flood cleaning consists of constant pressure changes in combination with the basket rotation.

The working chamber evolves from overpressure to depression, producing reverse flow variations to clean cavities and deep drilling.

PowerJet flood washing is particularly effective on surface contamination and chips.

Mechanical parts cleaning with flood washing

Using ultrasound

Ultrasound diffuses into the fluid and generates cavitation and micro-currents that allow to clean parts. The lower is the frequency, the more intense is the action.

Depending on the fragility of the material and the adhesion of the contamination, the frequencies to be used are different:

  • 25 to 40 kHz > general industry and automotive

  • 40 to 120 kHz > jewellery, optics, medical, electronics

  • 250 kHz to 1 MHz > semiconductors, precision components, nanotechnology, photovoltaics etc…

Cleaning machine with ultrasound and CNp application

Cyclic Nucleation process (CNp)

CNp technology ensures an ultra-efficient cleaning of complex geometries such as grooves, blind holes and narrow channels without attacking the surface of the parts. As part of the PowerJet, the CNp opens up new cleaning opportunities in many areas:

  • Depowdering after additive manufacturing

  • Disinfection of medical instruments (MD)

  • Désinfection d’instruments médicaux (DM)

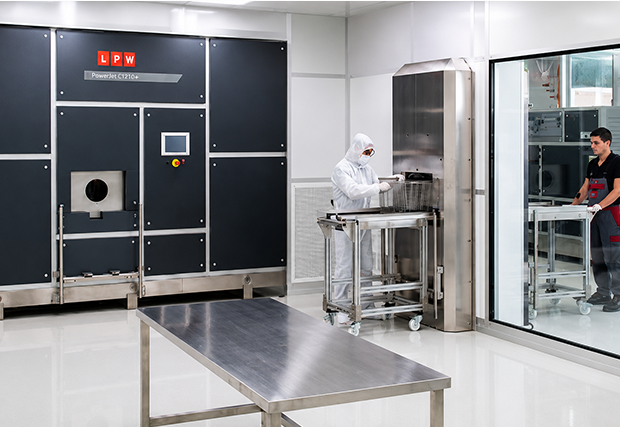

High purity

For highly sensitive cleaning applications, PowerJet’s design is upgraded to be a transition between the grey room and the cleanroom.

  • Semiconductor
  • Medical devices
  • Optical components (lasers and sensors)
  • Components with microstructures
Cleaning machine with ultrasound and CNp in a cleanroom

LPW / Surface Alliance

Member of the Surface AllianceLPW is leader of the group for high cleanliness requirements with aqueous solution, using ultrasound and CNp process.

photo_filter

Technical specifications

chevron_right Download the brochure

Useful dimensions

PowerJet 530
20 7/8" x 12 5/8" x 7 7/8" (154 lb) or 530 x 320 x 200 mm (70kg)
PowerJet 670
26 3/8" x 18 7/8" x 11 13/16" (440 lb) or 670 x 480 x 300 mm (200kg)
PowerJet 960
37 13/16" x 26 3/8" x 11 13/16" (881 lb) or 960 x 670 x 300 mm (400kg)

Overall dimensions

PowerJet 530
5' 6 15/16" x 6' 10 11/16" x 8' 2 7/16" or 1700 x 2100 x 2500 mm
PowerJet 670
6' 10 11/16" x 7' 10 1/2" x 8' 2 7/16" or 2100 x 2400 x 2500 mm
PowerJet 960
9' 10 1/8" x 9' 10 1/8" x 8' 10 5/16" or 3000 x 3000 x 2700 mm

Tanks volume (2 baths / 3 baths)

PowerJet 530
169 / 253 gallon or (640 / 960 liters)
PowerJet 670
317 / 475 gallon or (1200 / 1800 liters)
PowerJet 960
686 / 1162 gallon or (2600 / 4400 liters)

Other

Batch per hour
6 to 12 loads
Operating temperature
117 to 126 °F (65 à 70°C)
Drying
vacuum / hot air
