Machine de nettoyage pièces multibains à plateau rotatif

MB

Multi-tank turntable parts washer with front loading
Machine de nettoyage pièces multibains à plateau rotatif
  • Large capacity work chamber for large loads

  • Front loading with tilt door or trolley

  • Useful dimensions adjustable as needed

  • Closed circuit operation

  • 304L Stainless steel structure for strength and durability

  • Degreasing of mechanical parts in a few minutes

  • Made in France

Degreasing and rinsing of large and bulky parts by front loading

6 standard sizes

The MB mechanical parts degreasing machine is divided into a range of 6 standard sizes according to the dimensions, weight and quantity of parts to be cleaned.

  • MB 8 > L800 x W800 x H800 mm

  • MB 10 > L1000 x W1000 x H800 mm

  • MB 13 > L1300 x W1300 x H800 mm

  • MB 15 > L1500 x W1500 x H800 mm

  • MB 18 > L1800 x W1800 x H800 mm

  • MB 20 > L2000 x W2000 x H800 mm

Size of multi-tank turntable parts washer

High processing capacity

Historic product of our product line, the MAXIMA has proven its robustness in many truck and railway maintenance workshops.

  • Load capacity up to 2 tons

  • Removal of dried grease and oil by high flow spraying

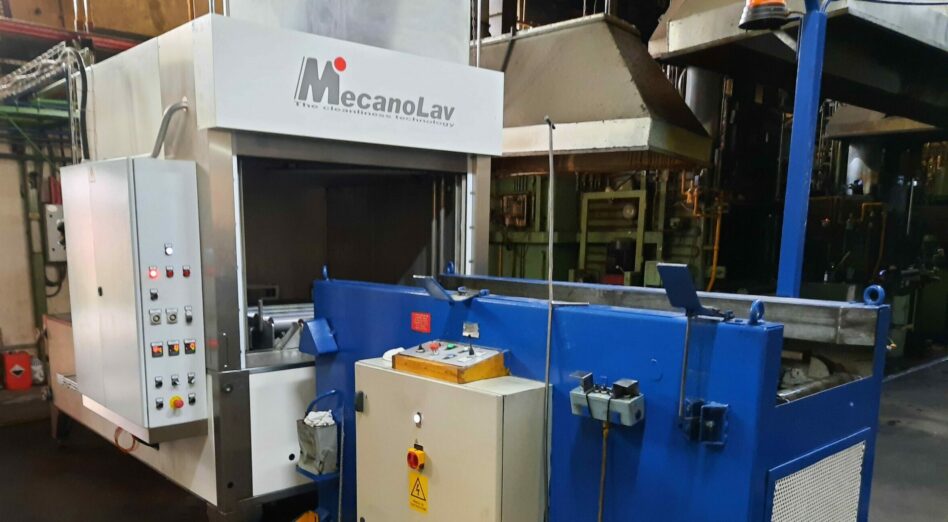

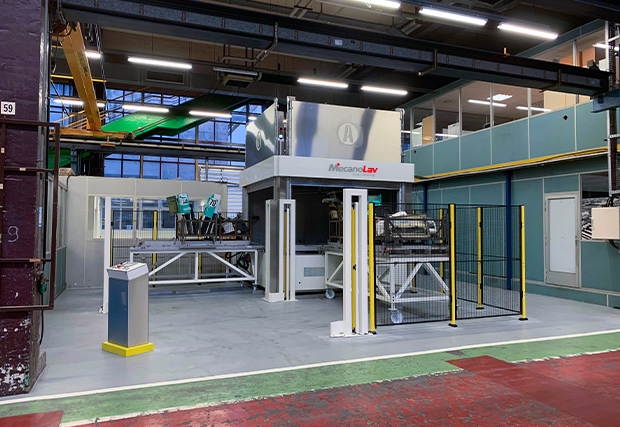

Application of turntable parts washer in railway maintenance workshop

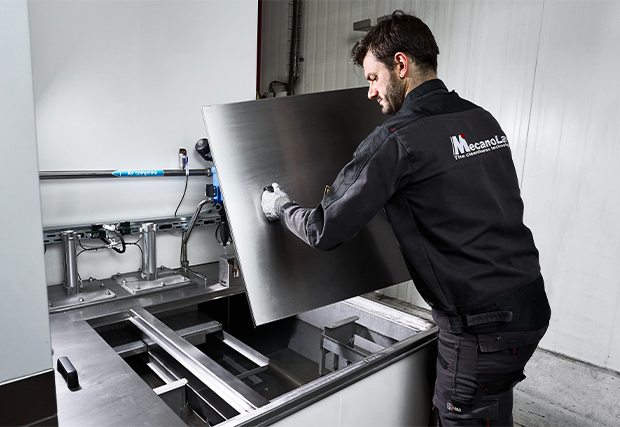

Efficient rinsing

Integrating 2 tanks that ensure washing and rinsing of the parts in a closed circuit.

When an optimal surface quality is required, such as in aerospace or aircraft applications, the flexibility of the MB allows the integration of several additional tanks.

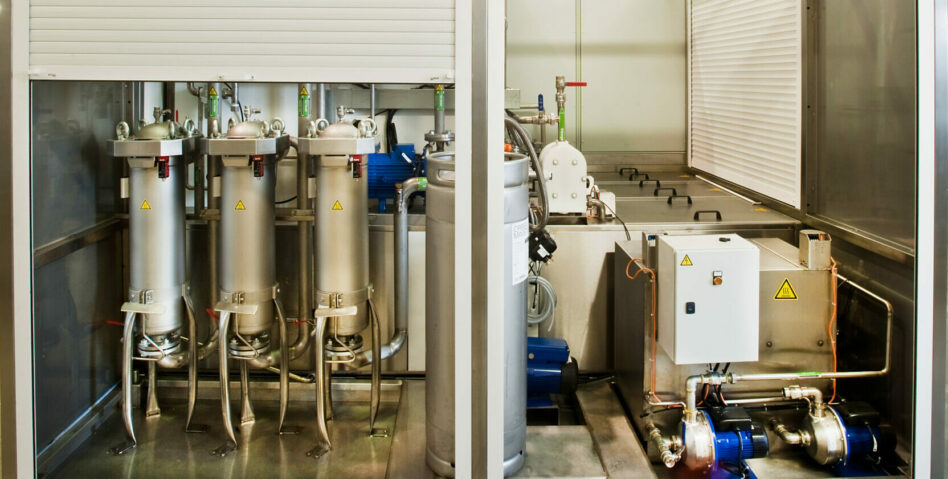

Circuit of the multi-tank turntable parts washer

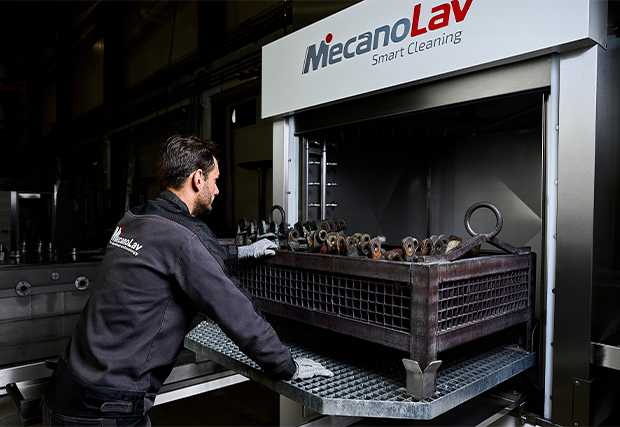

Front loading

MB front loading feature is available in two versions :

  1. Tilt door to open manually as a loading table with tray transfer guides
  2. Automatic vertical door that opens at the end of the cycle to be combined with a fixed loading table or a trolley.
Single tank turntable parts washer with front loading

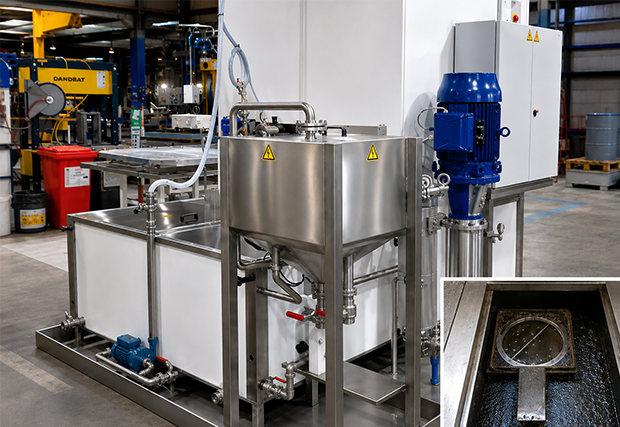

Easy maintenance

If large quantities of pollution are present and quickly saturate the tank (grease, sludge, oil, resins), the machine incorporates reprocessing devices to isolate this pollution in order to space out emptying and guarantee the cleaning performance.

  • Oil skimmer

  • Degreaser – decanter – scraper dredge

  • Scrolling paper filter

Degreasing machine for railway machine

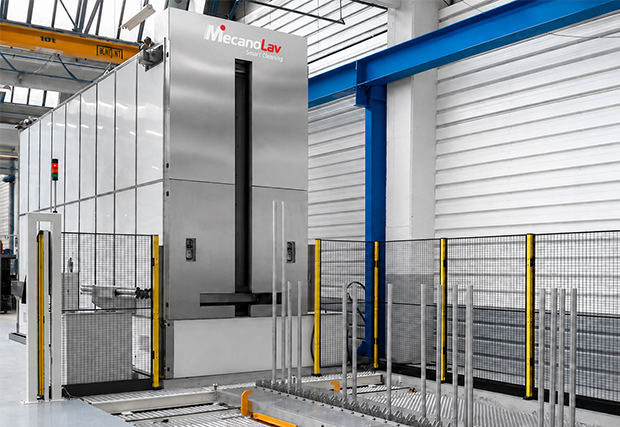

Adjustable dimensions as needed

In accordance with the dimensions of the parts to be cleaned, the cleaning unit can be adapted and equipped in consequence

  • Custom-made work chamber

  • Useful height up to 2000 mm

  • Change of the door by a motorized roller shutter

  • In-pit machine

Multi-tank turntable parts washer with adjustable dimensions

Flexibility & Integration

Among our product line, the MB and MAXIMA and (single tank) are the most flexible cleaning systems for a wide range of applications.

  • Automatic filling and dosing

  • Oscillating telescopic cleaning device

  • Fine filtration

  • Automatic loader friendly

  • Specific work piece carrier

Turntable parts washer with wide range of applications

Special applications

The operating environment is a key factor in achieving cleanliness requirements for complex and sensitive parts.

For this purpose, the MB parts washer can be integrated in a clean room to meet the most severe cleanliness standards.

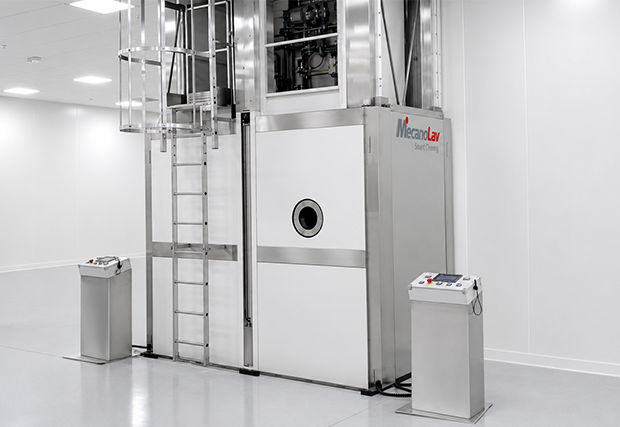

Multi-tank turntable parts washer in a clean room
photo_filter

Technical specifications

chevron_right Download the brochure

Useful dimensions

Turntable diameter
950 to 2420 mm as standard
Turntable (cut corners)
800 x 800 mm up to 2000 x 2000 mm as standard
Useful height
800 mm as standard
Loading height
960 to 1100 mm
Maximum load
1000 kg to 2000 kg as standard

Overall dimensions

Width
2450 to 3900 mm
Depth
1380 to 2750 mm
Depth with tilt door open
2380 to 2810 mm
Height
1950 to 2200 mm
Height with fan
2500 to 2610 mm
Height with open vertical door
3250 to 3500 mm

Others

Capacity per tank
350 to 1200 liters
Operating temperature
50 to 70°C
Heating power per tank
12 to 42 kW
Average cycle time
15 to 20 minutes
Washing / rinsing pressure
3,4 to 20 bars
Washing / rinsing flow
450 to 950 liters / minute
Empty weight
700 to 2000 kg
Installed power
34 to 121 kW
Voltage supply
400 V TRI
Power frequency
50 Hz
The Cleanliness Technology
Solve our customer cleanliness issues by finding out the appropriate cleaning solution
Case study
Lot pièces pour nettoyage avant traitement thermique
Industry & HT
Cleaning and drying parts before heat treatment

Degreasing batches of parts in MB and SOLVACS machine before heat treatment

chevron_right
See customer project
Case study

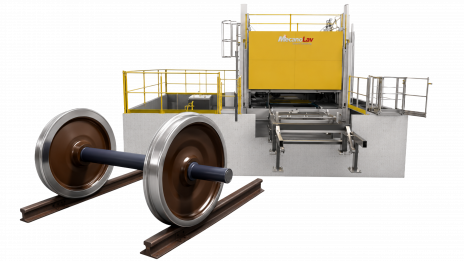

Cleaning and drying railway axles
