Machine de nettoyage et dégraissage à tambour en aspersion lessiviel

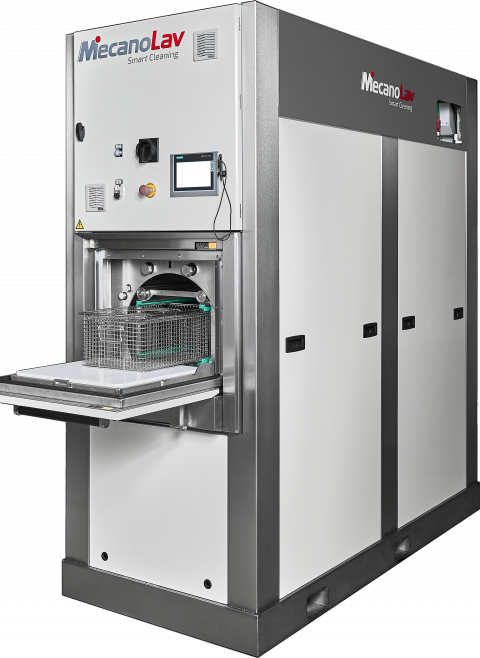

MecanoJET Compact

Compact drum parts washer for small loads
Machine de nettoyage et dégraissage à tambour en aspersion lessiviel
  • Under 2,5m² / 27 ft² floor space

  • 4 to 6 loads per hour

  • Drum oscillation or rotation

  • Modular cycle : washing, rinsing, drying

  • Closed circuit operation

  • Tilting or vertical door version

  • Made in France

Degreasing of loose, sorted or complex geometry mechanical parts

Under 2,5m² / 27 ft² floor space

The one-piece design of the MecanoJET Compact makes it an excellent cleaning machine for workshops lacking space, especially in the bar turning industry.

  • Width 950 mm (3 7 3/8”)

  • Easy to integrate in production line

4 to 6 loads per hour

The MecanoJET Compact machine is dedicated for small parts allowing a processing capacity from four to six loads per hour, achieving high levels of cleanliness and great flexibility.

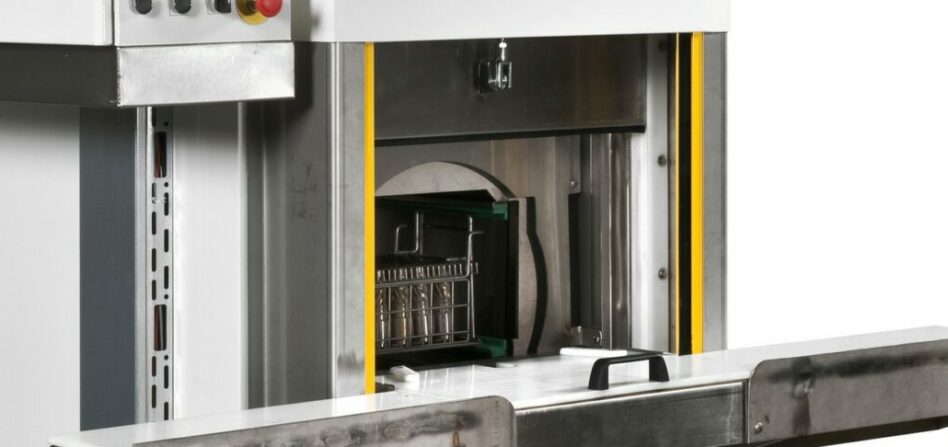

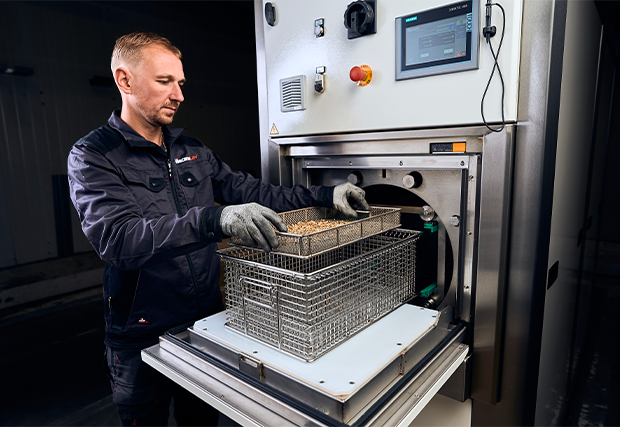

Loading station of compact drum parts washer

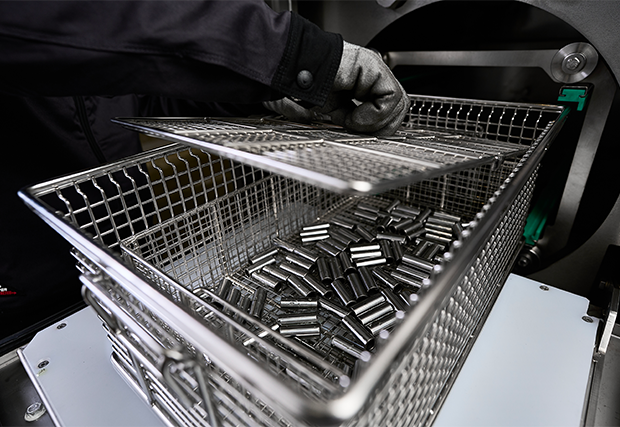

Small batch

The MecanoJET Compact can process baskets or palets with dimensions up to 530 x 320 x 200 mm (20 7/8″ x 12 5/8″ x 7 7/8″).

Her older sister, the MecanoJET can process large loads up to manufacturing of a custom-made drum.

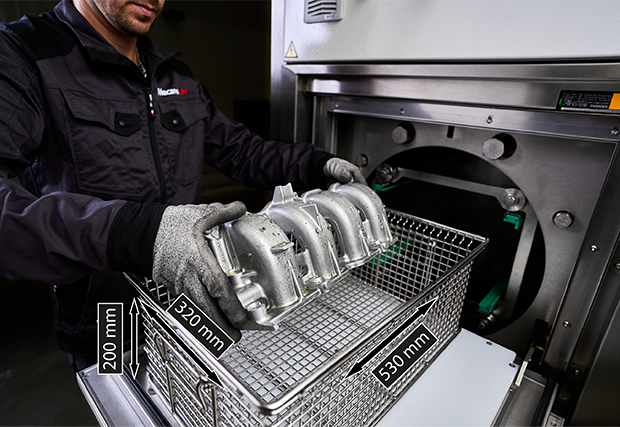

Basket dimensions of compact drum parts washer

360° rotation and oscillation

For each cycle, the MecanoJET Compact has the possibility to select between full rotation or drum oscillation.

  • Full rotation > closed basket / non-sensitive parts or clamped in position

  • scillation with a set angle > workpiece carriers / sensible parts

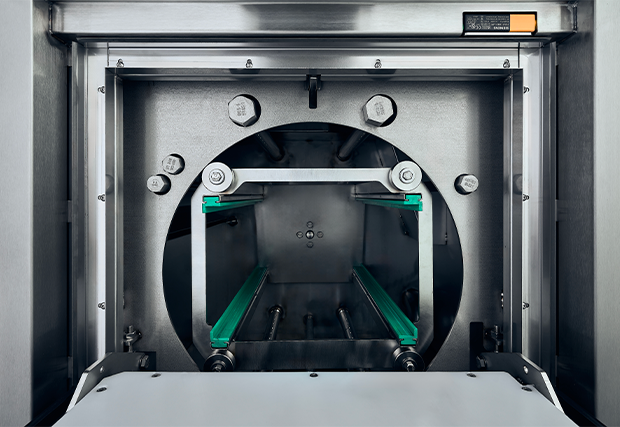

Compact drum parts washer with oscillation or full rotation

Complete and flexible cycle

To achieve great degreasing performances, the MecanoJET Compact is equipped with two separated tanks.

The cleaning cycle can be adjusted depending on cleanliness requirement and the parts to be cleaned.

  • Spray washing step

  • Spray rinsing step

  • Hot air drying and/or blowing step

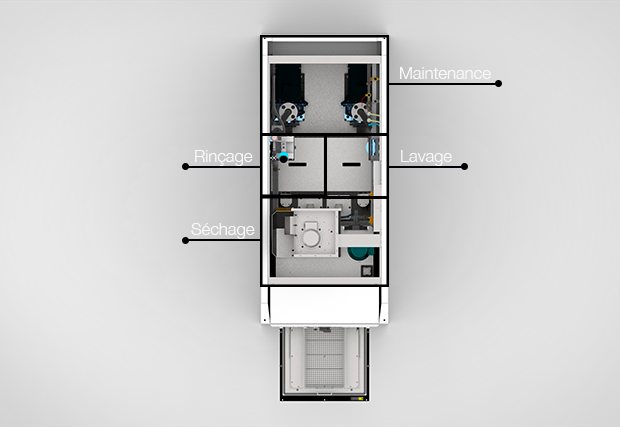

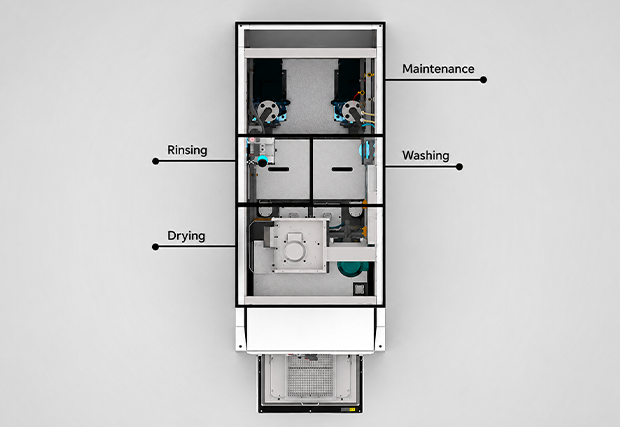

Position of the compact drum parts washer

Simple machine interface

The MecanJET Compact is equipped with a touch screen interface allowing a user friendly utilization for technician.

  • Cleaning cycle settings

  • Process parameters visualization

  • Parameters modification

  • Machine alerts and faults management

  • Traceability with cleaning report edition

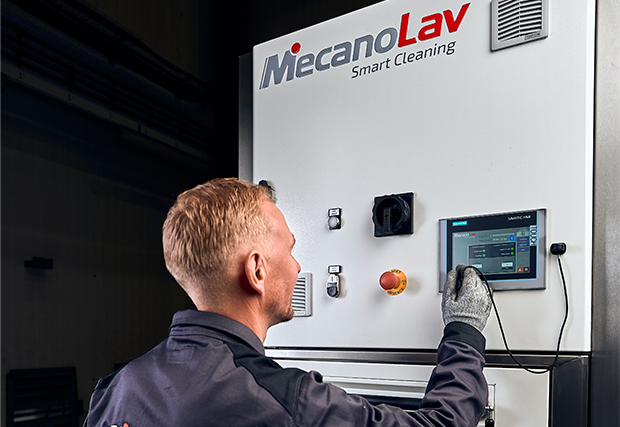

Human machine interface of compact drum parts washer

Easy maintenance

Design to be easily maintened, the MecanJET Compact ensures a wide maintenance access at the rear by a shutter roller.

  • Easy access to filters

  • Draining pump with integrated suction pipe

  • Water supply with gun for maintenance

  • Automatic detergent addition

  • Reverse flow filling

  • Oil skimmer

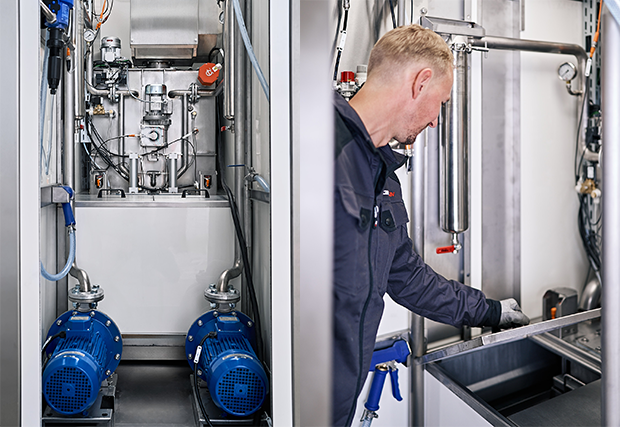

Compact drum parts washer with easy maintenance

I/O LINK - Plug & play

In standard, the machine is equipped with masters and I/O links modules allowing troubleshooting on machine issues.

  • Immediate detection of wire break or signal failure

  • No losses of measured values

  • Plug & play sensor replacement: no reconfiguration

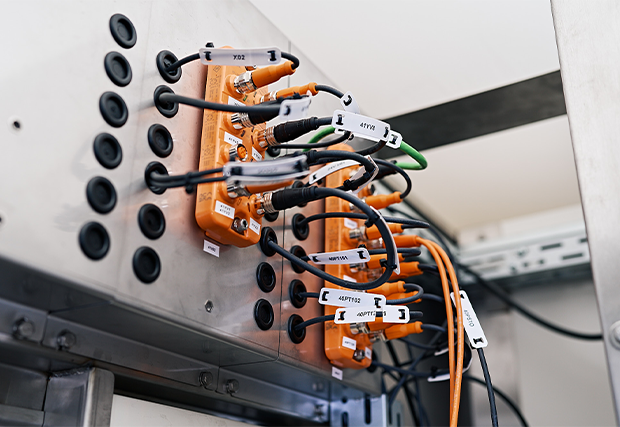

I/O link system of a compact drum parts washer

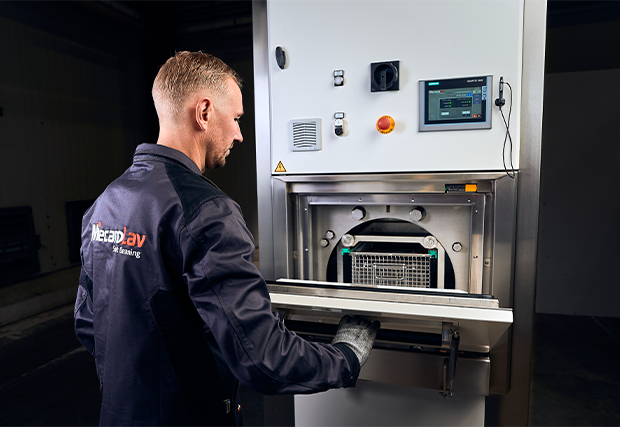

Tilting or vertical door

In standard version, the MecanoJET Compact come with a manual opening/closing tilt door, as an option it can be equipped with a vertical door which will open automatically at the end of the cycle.

  • Tilt door ensuring loading station function

  • Vertical door with fixed loading station

Compact drum parts washer with vertical door

Adaptation to your needs

MecanoLav’s DNA consists in adapting our machines to the cleaning issues of our customers. Even if it is a standart solution, the MecanoJET Compact is no exception to this rule.

  • Armored stainless build : stripping of valve bodies

Compact drum parts washer for small loads details
photo_filter

Technical specifications

chevron_right Download the brochure

Useful dimensions

Internal basket dimension (LxW)
480 x 280 mm (18 7/8”x 11” )
Outside basket dimension (LxWxH)
520 x 320 x 200 mm (20 7/8"x 12 5/8”x 7 7/8”)
Maximum load
30 kg (66 lbs)

Overall dimensions

Width
950 mm (3’ 1 3/8”)
Height
2280 mm (7’ 5 3/4”)
Length
2210 mm (7’ 3”)
Length with opening door
2670 mm (8’ 9 1/8”)

Others

Tank volume
2 x 200 liters
Drum rotation
5 rpm
Operating Temperature
55 à 70°C (131 to 158°F)
Average cycle time
10 to 20 minutes
Wash & rinse pressure
4 bars (58 PSI)
Wash & rinse flow
200 l/min (44 GPM)
Heating power (tank)
2 x 12 kW
Heating drying power
6 kW
Power installed
36,8 kW
Voltage supply
400V TRI
Power frequency
50 Hz
