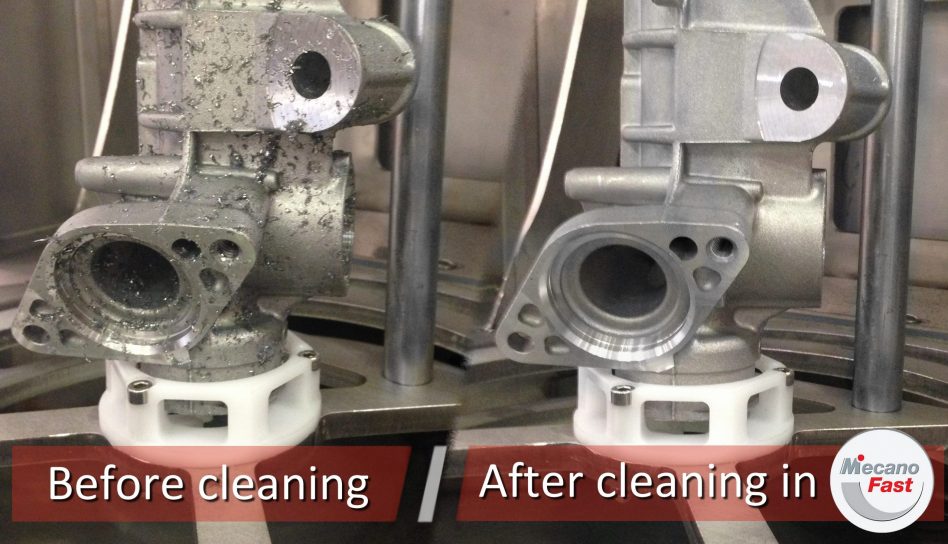

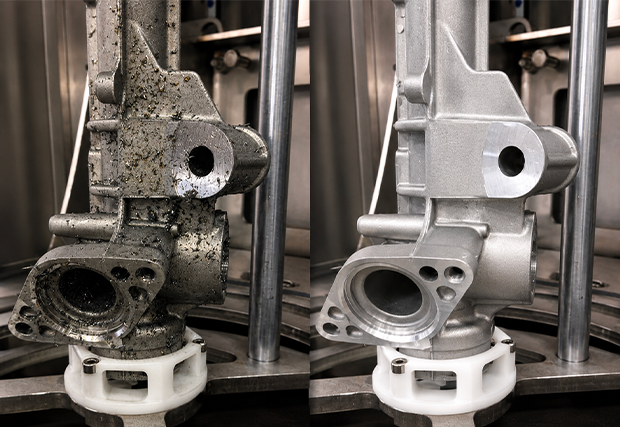

A company in the automotive industry has requested our expertise in the inter-operation cleaning of aluminum rack housing after machining.
Mise en propreté intérieur / extérieur selon les critères suivants :
Single reference > Ø 9 7/16” x Height 21 1/2” (Ø 240mm x H546 mm)
Contamination > cutting oil and chips
One piece flow rack housing cleaning in less than 60 seconds
Layout constraint > width 27 9/16” (700 mm)
The parts are loaded vertically by a technician on a custom-made fixture. Access to the workstation is cleared and protected by a U-shaped light curtain.
After the cycle started, the part enters the working chamber in which a specific washing and drying tool performs the cleaning of the part (ID/OD/ports/threaded holes).
Clean and dry in 42 seconds
Floor space 22ft² (2m²)
