Large capacity
Robot friendly
Fast cycle
Perfect Washing and Drying
Customizable
Made in France
Effective length: 1,000 to 3,000 mm.
The machine can clean one or more parts in a single cycle.

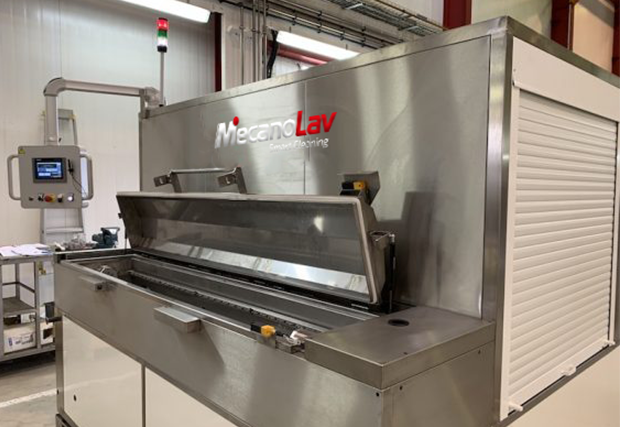

The lid opens to 90° to facilitate loading and unloading of parts from the top.
Manual mode
Robot mode (automatic)
Varies from 120 to 480 seconds depending on the complexity of the parts and the application.

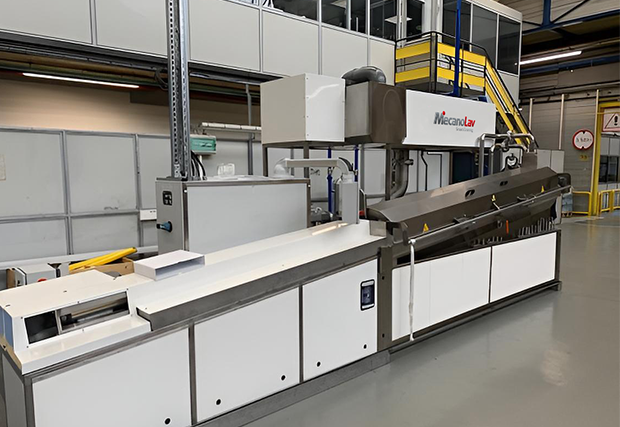

The MecanoHAX combines external and internal part cleaning in a single cycle, without any intermediate handling.
Rotating brushes for exterior washing

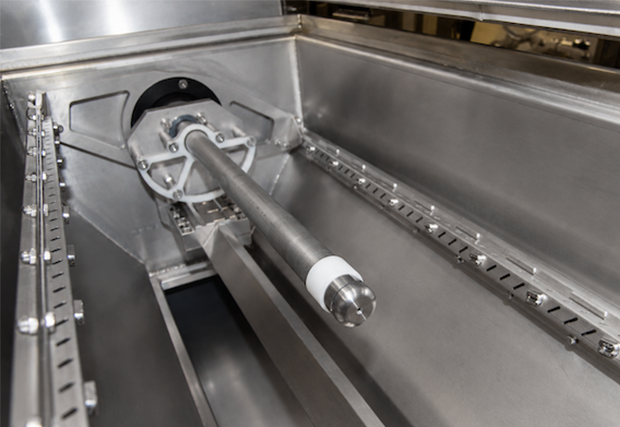

Syringe for internal irrigation
Compressed air is used efficiently to ensure perfect drying while keeping operating costs low.

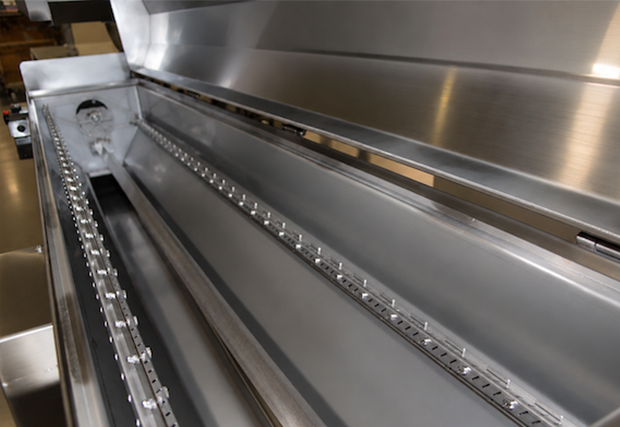

Rotating ramps
Syringe(s)
Inclined plane
Washing and drying of internal areas are performed using one or two syringes with an adjustable stroke depending on the parts and recipes.
Each component is designed to ensure optimal cleaning.
Nozzles
Ramps
Installations
Programs
Cycles

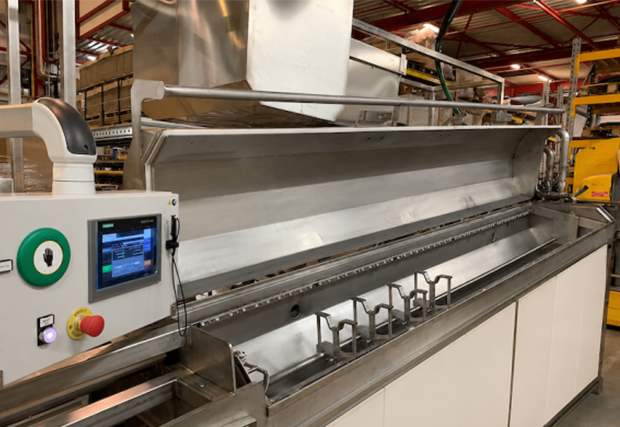

The parts are held in place by adjustable V-shaped clamps that can be adjusted to fit the dimensions.
Automatic or manual adjustment
Sliding vents depending on length
Adjustable clamps depending on the diameter
The machine features fine filtration using a bag filter.
1 inter-operation bath
2 final rinse cycles
Ability to incorporate custom configurations to meet production constraints and requirements.

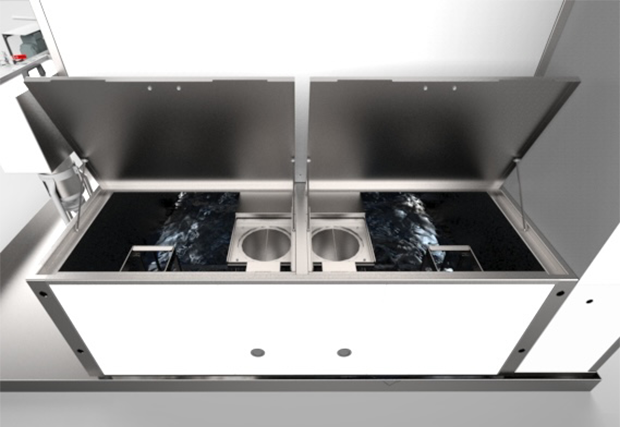

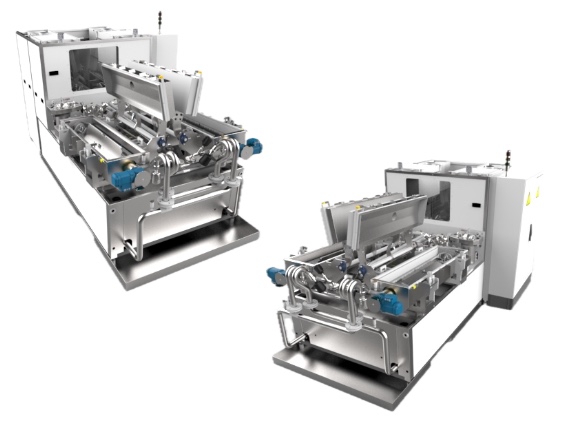

Double work chamber
Double syringe
Hydraulic body cylinder degreasing with MecanoFAST parts washer after machining and welding in final wash.
