Cleaning and Degreasing Gearbox Housings

Internal and External Degreasing of Gearbox Housings

An automotive company contacted MecanoLav to have its engine cases cleaned .

    • Cleaning the interior of a complex room
    • Ensure the surface is degreased for good paint adhesion
    • Minimum surface tension 38 dynes
    • Completely dry parts
Automotive sector

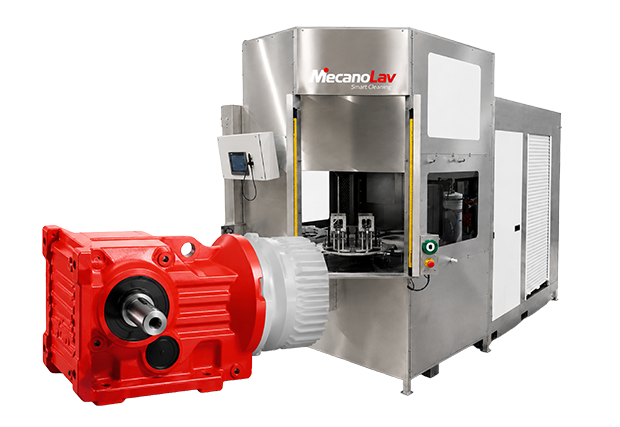

Machine de dégraissage

Effective Action

  • WR Module: Detergent Spray + Rinse
  • No exchange between baths
  • A minimum surface tension of 38 dynes
  • Targeted spraying with nozzles designed for internal cleaning of the housing
  • Measuring the Conductivity of Rinse Water

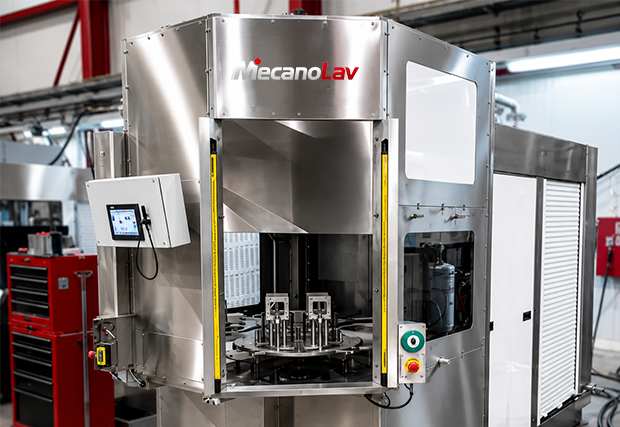

Machine de nettoyage à positions

Tailored solution

  • 3 installation methods compatible with 8 different part numbers
  • Loading and Unloading During Downtime Using a Rotary Table
  • Manual loading secured by light curtains
  • Energy Consumption Monitoring

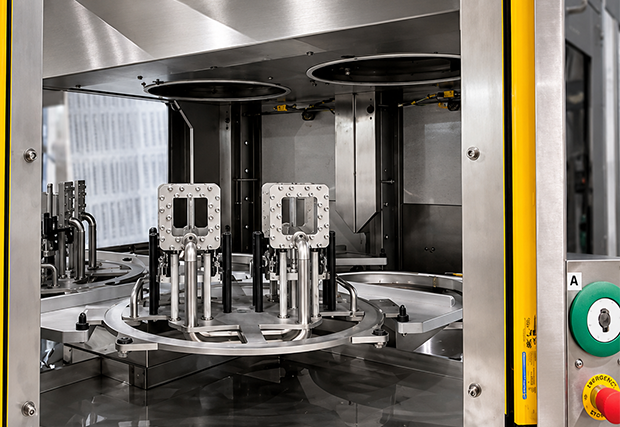

Table tournante

Quick Cleaning

  • 75-second cycle time
  • Cleaning of 2 to 3 rooms per cycle
  • Simultaneous washing and rinsing (2 chambers)
  • Separate rooms for each stage

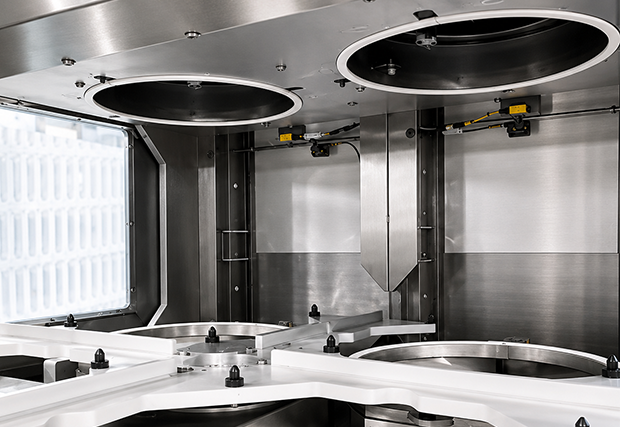

Zoom sur les deux chambres de travail simultané de la machine MecanoFAST

PDF version – 298 Ko
Learn more about the MecanoFAST product line
