Cleaning Drive Shafts

As a robotic cell with corrosion protection

A Tier 1 automotive supplier contacted MecanoLav to have its drive shafts cleaned .

    • Cleaning After Sandblasting
    • Final wash before packaging the parts
    • Thorough drying toensure that the protective oiladheres properly after the procedure
Automotive Sector

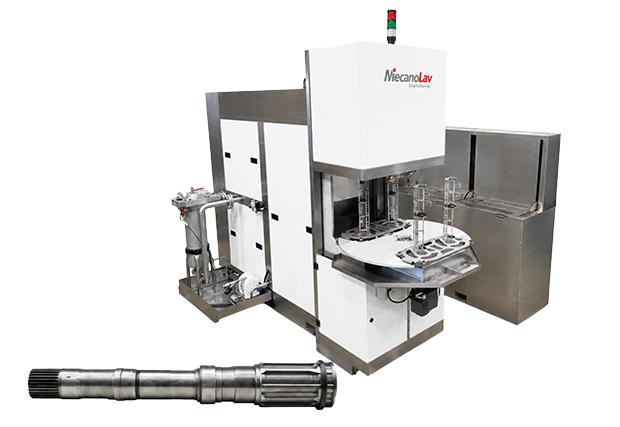

Filter machine

Clean and dry in 40 seconds

  • 1 piece every 20 seconds
  • Dual-chamber system for cleaning two parts simultaneously

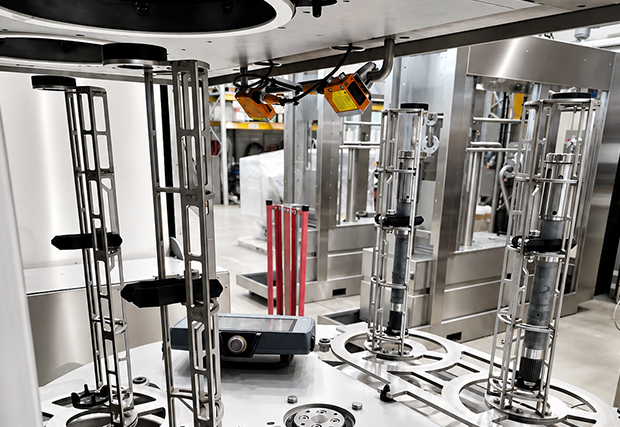

MecanoFast turntable

Particle Cleanliness

  • Cleanliness in accordance with the VDA 19 standard
  • 2 spray systems that ensure targeted and uniform coverage on:

-theinside of the shaft ( Ø 15 mm)

-theoutside of the shaft ( flutes and grooves)

  • Flexible fixtures capable of accommodating two part numbers

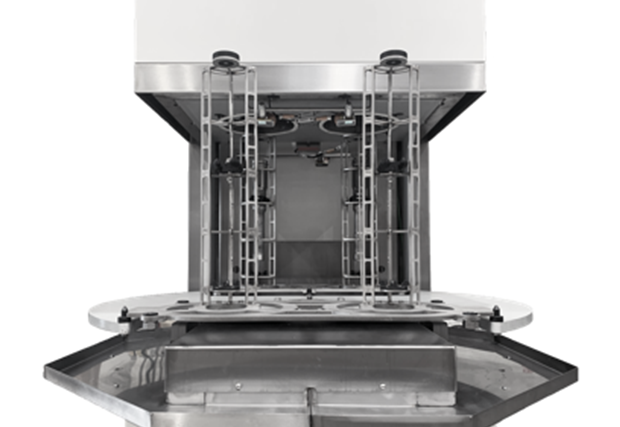

posss

Integrated into a robotic island

  • Placement and retrieval by a single robot
  • Cleaning cycle time with a 2-position rotary table
  • Dewatering/soaking module : protection at the end of the cleaning process before packaging
  • Robot loading of 10 shafts per cycle

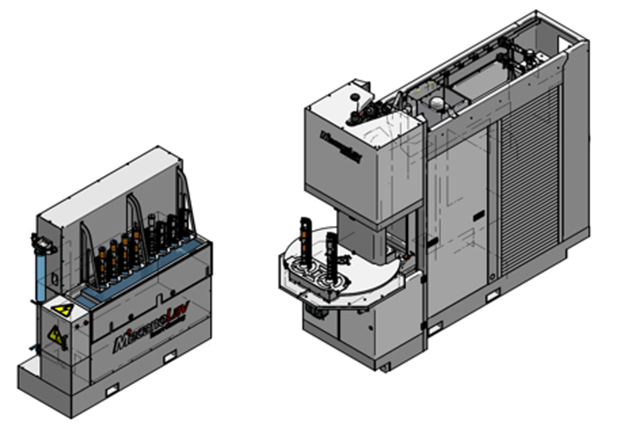

Setting machine
