Cleaning of Cooling Circuits for Electric Batteries

Internal Particle Removal from Cooling Pipes

A Tier 1 automotive supplier sought MecanoLav’s expertise for cleaning cooling components for electric vehicle batteries.

    • Final cleaning of a complex part before assembly
    • Remove metal particles larger than 400 microns to prevent contamination of the coolant
Automotive sector

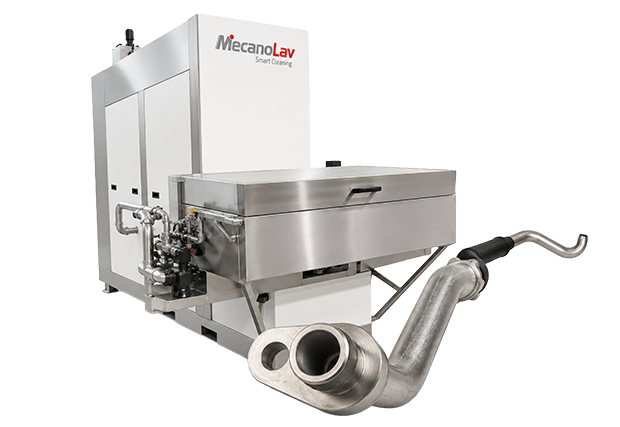

MecanoFasy horizontale

Proper Cleaning

  • Compact horizontal chamber machine
  • Easy integration into the production process
  • Interchangeable fixtures designed for 4 different part numbers
  • Quick connection of parts to be washed to the cleaning system
  • Ergonomic Manual Loading and Unloading
    • Final washing of a complex part before assembly
    • Remove metal particles greater than 400 microns to avoid pollution of the coolant
Automotive sector

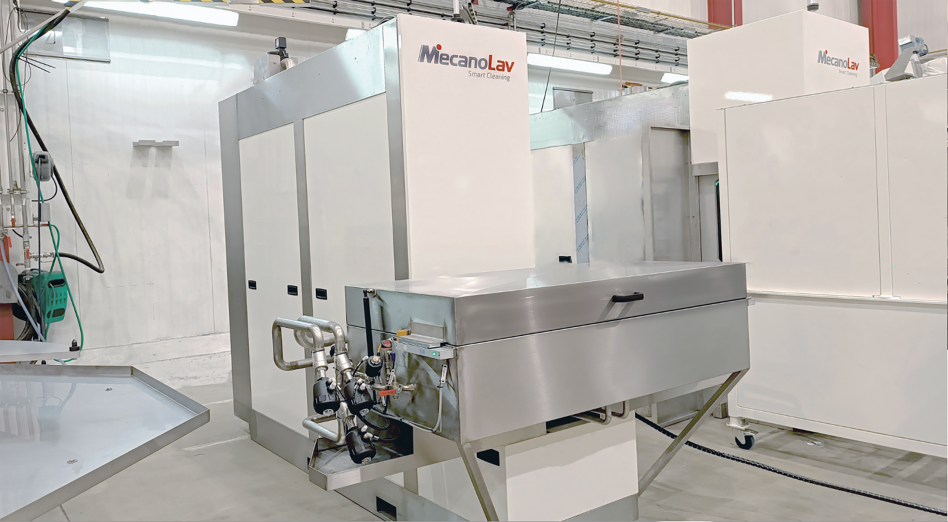

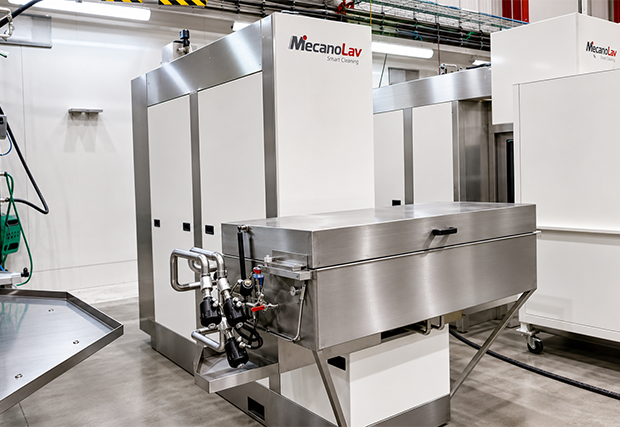

Machine de nettoyage horizontale

Effective Action

  • 90 to 120 seconds cycle time
  • 2 to 4 pieces per cycle
  • Flushing Cleaning/Drying ​
    Injection of water and air from one end to the other to flush out residual contaminants and effectively dry the part
  • Filtration with controlled efficiency for process fluids and air

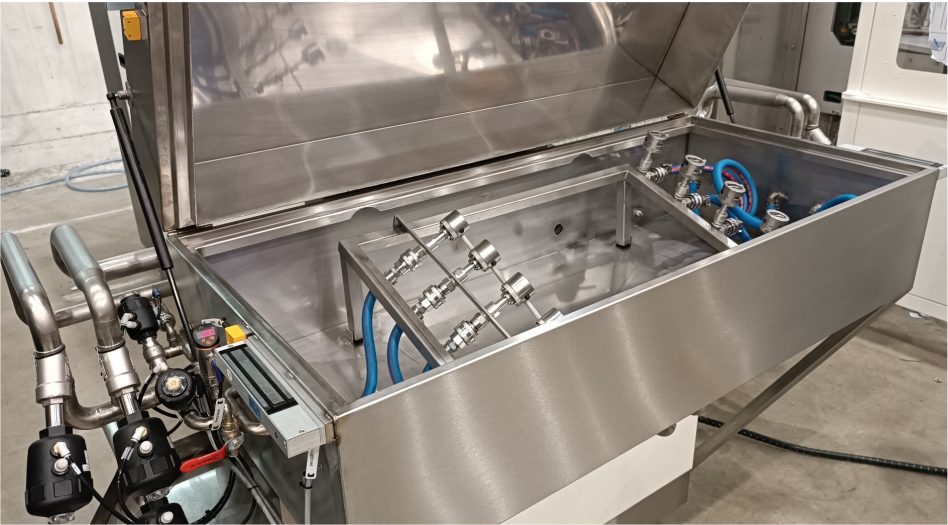

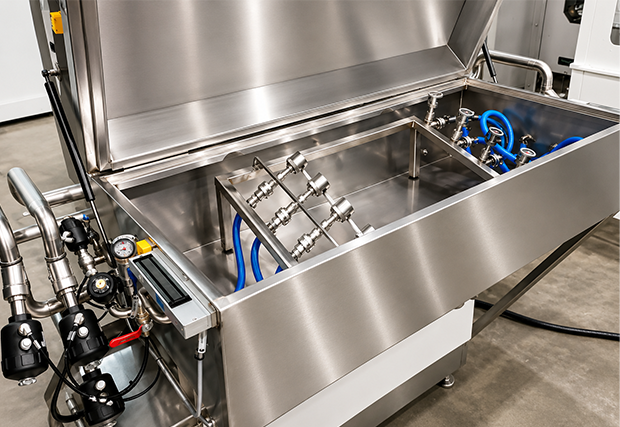

Chambre de nettoyage horizontale vue buses
